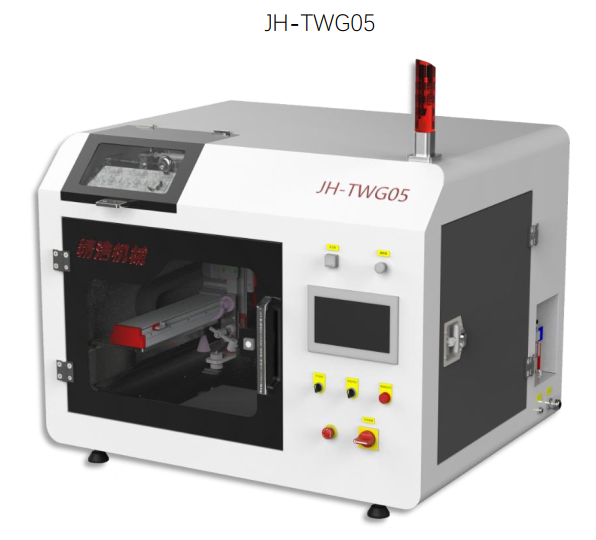

Tabletop Ultrasonic Spray Machine merk HANGZHOU PRECISION MACHINERY CO.,LTD. type JH-TWG05

Ultrasonic spray nozzle frequency : 60kHz, automatic tracking
Ultrasonic spray nozzle power : 10 ~ 100W
Ultrasonic spray nozzle type : Convergent/Divergent/Spiral
Effective spray range : 2~260mm/pc, can be customized
Spray uniformity : > 95%
Solution conversion rate : > 90%
Dry film thickness : 20nm ~ 100um
Solution viscosity : < 50cps
Temperature range : 0 ~ 500°C
Spray particle size : 10 ~ 45um (distilled water)
Diversion pressure : ≤0.15Mpa
Input voltage : 220V, 50/60 Hz
Movement mode : XYZ three-axis, G-code programming
Control contents : Feeding, temperature , air pressure, ultrasonic spraying, motion
trajectory, and other systems
Feeding method : Autonomous program high-precision injection pump
Ultrasonic dispersion system (optional) : 40kHz,automatic frequency tracking
Ultrasonic disperser power : ≤200W
Exhaust system : Equipped
