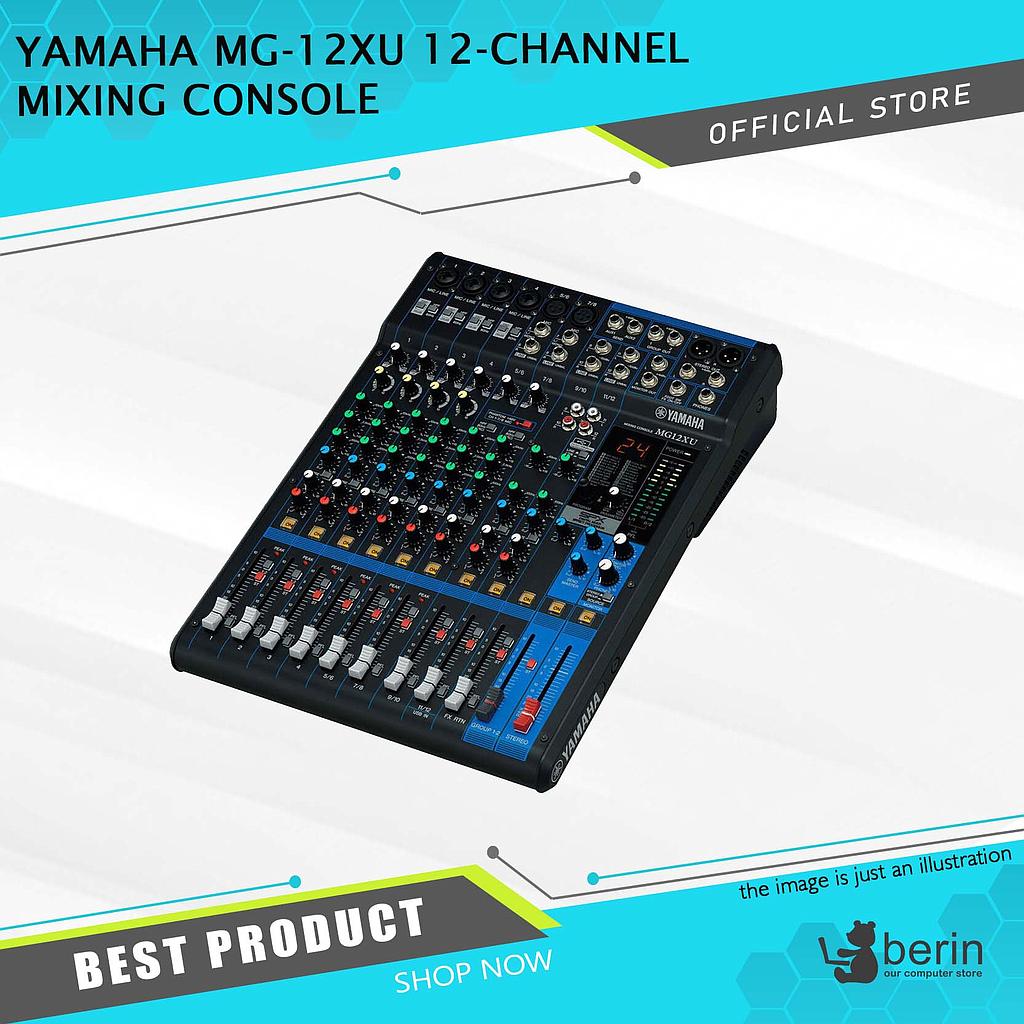

YAMAHA MG-12XU 12-CHANNEL MIXING CONSOLE

SPX algorithm: 24 programs
Phantom power: +48 V
Digital I/O: USB Audio Class 2.0 compliant, Max 192
kHz, 24-bit
Input Channels: 6 Mono[MIC/LINE], stereo[LINE]: 3
Output Channels: STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 1
Bus: Stereo: 1, AUX[FX]: 1
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8
dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack
time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz
shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz
peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz
shelving
PEAK LED: LED turns on when post EQ signal reaches 3
dB below clipping
