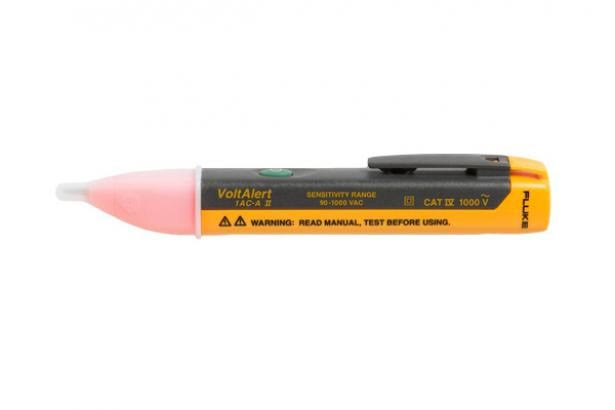

VoltAlert Volt Detection Electrical Tester Testpen brand Fluke type 1AC-II

OPERATING PRINCIPLE
Senses the steady state electrostatic
field produced by ac voltage through
insulation without requiring contact to
the bare conductor. A red glow at the
tip and a beeping noise (if not switched
OFF) indicates the presence of voltage.
Note: Does not respond to random
electrostatic discharge.
VOLTAGE SENSING RANGES
Nominally, 90 V AC to 1000 V AC or 200
V AC to 1000 V AC depending on model,
45 Hz to 405 Hz; also a 20 V to 90 V
control circuit model
DETECTOR TIP STYLE
Blade or round, depending on model
LIGHT SOURCE
One high intensity red LED
SAFETY RATING
1000 V, CAT IV
IP RATING
IP 40
OPERATING TEMPERATURE RANGE
-10 °C to 50 °C
OPERATING HUMIDITY RANGES
0 % to 95 % (0 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 °C to 55 °C)
OPERATING ALTITUDE
3000 meters
BATTERIES
2 AAA alkaline batteries included
