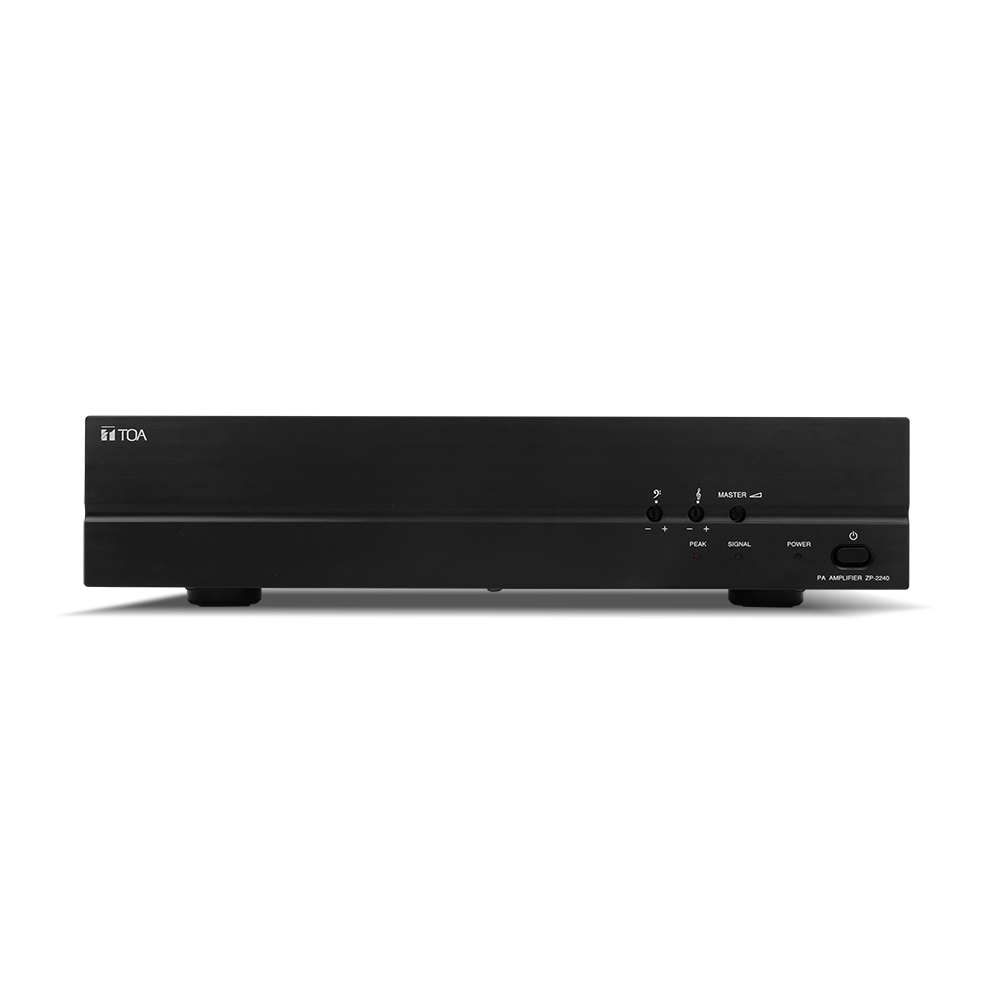

TOA ZP-2240 Power Amplifier

Power Source 220 - 240 V AC, or 24 V DC
Rated Output 240 W
Power Consumption 238 W (AC Operation EN60065), 520 W
(AC operation at rated output),
15 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion Less Than 1% at 1 kHz, 1/3 rated power
Input Line in: 0 dB* (1.0 V), 10 kΩ, balanced, screw terminal
100 V line in: 40 dB* (100 V), 330 kΩ, unbalanced, screw
terminal
Power remote control: Make contact input
Output Loop out: 0 dB*(1.0 V), 10 kΩ, balanced, screw terminal
Speaker out: Balanced (floating)
High impedance: 42 Ω (100 V), 21 Ω (70 V)
Low impedance: 4 Ω (31 V)
S/N Ratio More Than 60 dB
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Indicator Power LED, signal LED, peak LED
Controls Front Panel: 1-Master VR, 1-Bass Tone VR, 1-Treble
Tone VR (semi-fixed type)
1-Power Switch
Rear Panel: 1-SP-100V Line VR (semi-fixed type), Remote
Power Control Terminal
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 1001 (H) × 360 (D) mm (16.5" × 4.0" ×
14.2")
Weight 13.2 kg (29.1 lb)
