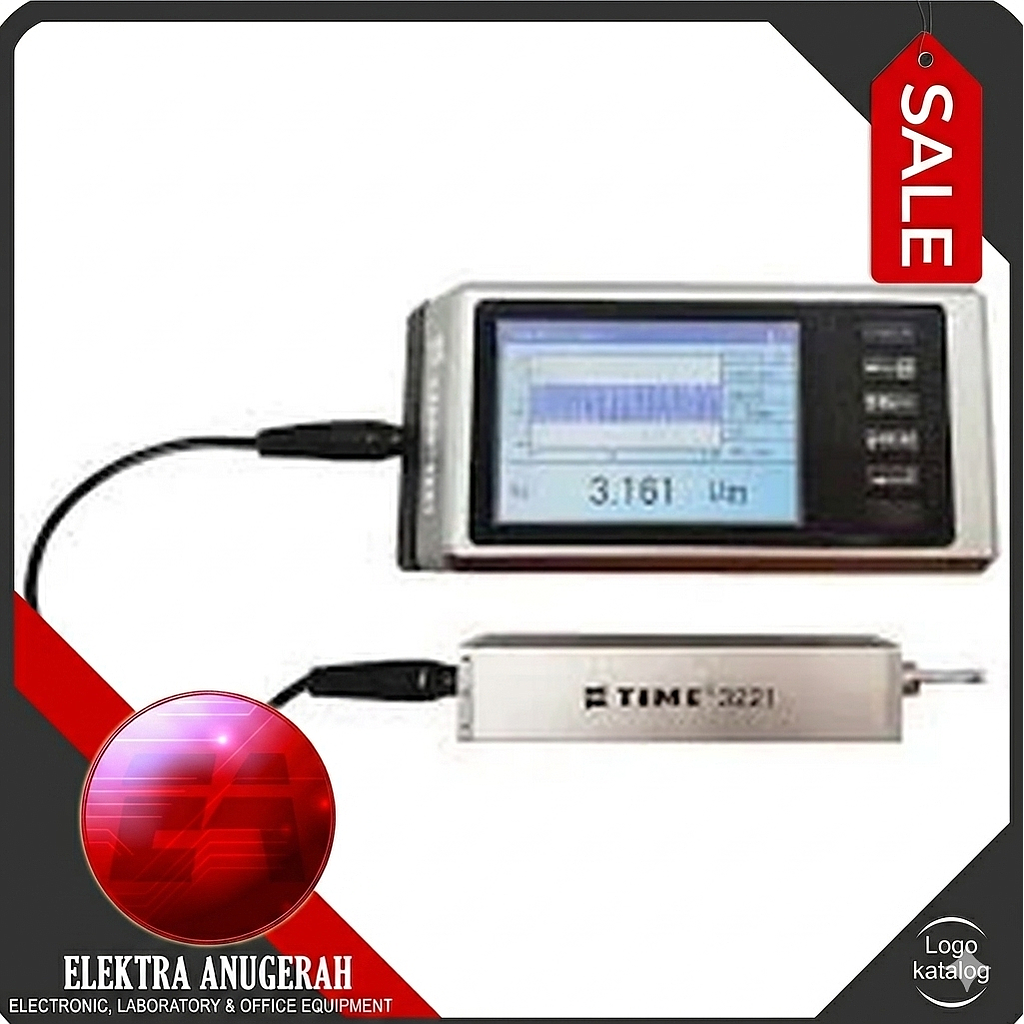

SURFACE ROUGHNESS TESTER TIME3221 (termasuk setting, comisioning dan training)

●Separated design, mini driver easy and convenient to use
●Multi measurement parameters: Ra, Rp, Rv, Rt, Rz, Rq,
Rsk, Rku, Rc, RPc, RSm, Rmr(c), tp, Rmr, Rpm, Rz1max,
RzJIS, Rmax, Htp, Rδc, R △q, R△a, Pa, Pp, Pv, Pt,
Pz, Pq, Psk, Pku, Pc, PSm, Pmr(c), Pmr, Pz1max, PzJIS,
Pδc,P△q, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2
●Touch screen with TFT LCD showing all important
parameters and graphs
●High accuracy inductive pickup
●Filtering methods of 2RC, GAUSS
●Compatible with standards of ISO1997, ANSI and JIS2001
●Connected to the printer to print all parameters
and graphs
●RS232 interface and USB interface meeting more needs
●Auto switch off
'Pickup
Test principle Inductance type
Measurement range 400μm(±200μm), 50μm(±25μm)
Stylus tip radius 5μm/2μm optional
Stylus tip material Diamond
Measuring force 4mN/0.75 mN
Stylus tip angle 90º/60º
Radius of skid curvature 45mm
Maximum drive range 19mm/0.748inch
Traversing speed
Measuring:
Cut off length = 0.08 mm Vt=0.25 mm/s
Cut off length = 0.25 mm Vt=0.25mm/s
Cut off length = 0.8 mm Vt=0.5 mm/s
Cut off length = 2.5mm Vt=1mm/s
Returning V=1mm/s
Accuracy Less than or equal to ±10%
Repeatability ≤6%
Cut-off length 0.08mm,0.25mm,0.8mm,2.5mm,
selectable
Evaluation length (1~5 )L selectable
Measuring range and
resolution
Measuring range Resolution
Automatic 0.001μm,0.008μm
±50μm 0.001μm
±200μm 0.008μm
Power Built-in Li battery
Power adapter Input: 100 V~240VAC,50/60Hz
Output: 9V,3A
Working environment Temperature: 0℃~40℃
Humidity: < 90% RH
Dimensions (mm) 155.4×75×53
Weight (g) 580
