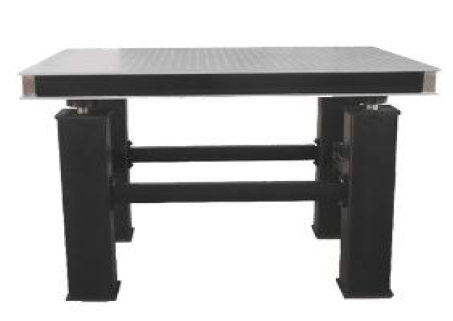

Optical table (A-97)

Features:
■ Large optical vibration isolation platform, the outer frame is made
of high-quality medium carbon steel plate with strong rigidity, small
deformation and good welding performance.
■ The vibration isolation layer uses a honeycomb structure material
with low natural frequency and strong vibration isolation
performance, which can well control the vibration response.
■ The panel adopts high-permeability stainless steel plate, which is
practical, beautiful and wear-resistant after fine grinding.
■ Vibration isolation bracket adopts composite material, solid
damping vibration isolation, stable and reliable structure, suitable
for experimental places with good environmental vibration
■ Adjustable supporting part adopts wear-resistant screw rod and
plane thrust ball bearing, easy and reliable when using
■ Flatness: <0.05mm / m2
■ Surface roughness: 0.8μm ～ 1.6μm
■ Natural frequency: 3Hz ～ 6Hz
■ Amplitude: <5μm

Model : PT-01PT600x900
Size(mm) : 600x900
Thickness (mm)(C) : 50
Mounting Hole Type (mm) : 25x25
Aperture : M6
Surface Flatness (mm) : 1.4
Weight(kg) : 60
