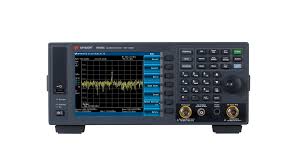

Keysight Basic Spectrum Analyzer N9323C

Basic Spectrum Analyzer 1 MHz to 13.6 GHz

Basic Spectrum Analyzer (BSA) adalah alat ukur elektronik yang digunakan untuk menganalisis sinyal dalam domain frekuensi. Alat ini umum digunakan dalam berbagai aplikasi pengujian dan pengukuran RF (Radio Frequency) dan mikrowave.

SPESIFIKASI :

- Frequency range: 1 MHz to 13.6 GHz
- Frequency resolution: 1 Hz
- Marker resolution counter: 1 Hz
- Span range: 0 Hz (zero span); 100 Hz to 13.6 GHz
- Sweep time: 2 ms to 1000 s (span ≥100 Hz); 600 ns to 200 s (zero span)
- Resolution bandwidth (RBW) 10 Hz to 3 MHz
- Video bandwidth (VBW) 1 Hz to 3 MHz
- Amplitude range DANL to +10 dBm (1 MHz to 500 MHz); DANL to +20 dBm (500 MHz to 13.6 GHz); preamp off
- Input attenuator range 0 to 50 dB, in 5 dB steps
- Maximum damage level +30 dBm (Average continuous power), DC voltage ± 50 VDC maximum
- Frequency : 1 MHz to 13.6 GHz
- Resolution bandwidth (RBW) : 10 Hz to 3 MHz
- Video bandwidth (VBW) : 1 Hz to 3 MHz
- Connector and impedance Type-N female, 50 Ω
- AM/FM modulation analysis (Option AMA):
- Frequency range 10 MHz to 13.6 GHz
- Carrier power range −30 to +10 dBm (1 to 500 MHz); −30 to +20 dBm (500 MHz to 13.6 GHz)
- Carrier power displayed resolution 0.01 dBm
- AM measurement Modulation rate 20 Hz to 100 kHz
- AM measurement Depth 5 to 95%
- FM measurement Modulation rate 20 Hz to 200 kHz
- FM measurement Deviation 20 Hz to 400kHz
- ASK/FSK modulation analysis (Option DMA):
- Frequency range 2.5 MHz to 6 GHz
- Carrier power range −30 to +20 dBm
- ASK measurement Symbol rate range 100 Hz to 100 kHz
- ASK measurement Modulation depth/index 5 to 95%
- FSK measurement FSK deviation 100 Hz to 400 kHz
- Dimension (H x W x L): 132.5 mm x 320 mm x 400 mm
- Net Weight : 7.9 kg (17.4 lbs), nominal
- Operating temperature range : +5 to +45°C
- Voltage : 100 to 240 VAC
- Power consumption : ≤ 25 W, < 20 W, typical
- Size : 165.1 mm (6.5 inch) diagonal (nominal)
- Display Resolution : 640 x 480

Catatan : Untuk menjaga ketidaksesuaian spesifikasi teknis, harap terlebih dahulu menghubungi supplier untuk penyesuaian spesifikasi yang dibutuhkan.
