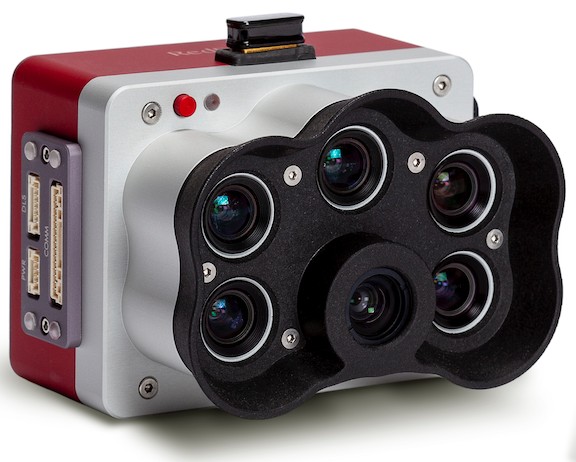

Kamera Multispektral MicaSens RedEge-P

Kamera Multispektral MicaSens RedEge-P
• WEIGHT : 350 g (12.3 oz.) RedEdge-P + DLS 2
• DIMENSIONS : 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)
• RGB OUTPUT* : 5.1 MP (global shutter, aligned with all bands)
• SENSOR RESOLUTION : 1456 x 1088 (1.6MP per MS band) ; 2464 x 2056 (5.1MP panchromatic band)
• FIELD OF VIEW : 50° HFOV x 38° VFOV (MS) ; 44° HFOV x 38° VFOV (PAN)
• EXTERNAL POWER : 7.0 V - 25.2 V
• POWER INPUT : 5.5/7.0/10W (standby, average, peak)
• IP RATING : IP4X
• CAPTURE RATE : Up to three captures per second raw DNG
• STORAGE : CFexpress card
• INTERFACES : Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
• SPECTRAL BANDS : Blue (475 nm center, 32 nm bandwidth), ; Green (560 nm center, 27 nm bandwidth), ; Red (668 nm center, 14 nm bandwidth), ; Red Edge (717 nm center, 12 nm bandwidth), ; Near-IR (842 nm center, 57 nm bandwidth)
Multispectral kit includes: • RedEdge-P sensor • DLS 2 light sensor with embedded GPS • CRP2 Calibrated Reflectance Panel • USB Wi-Fi dongle • Lens cover • Integration cables • Assorted mounting hardware • CFexpress card • CFexpress card reader • Hard carrying case • Start guide
