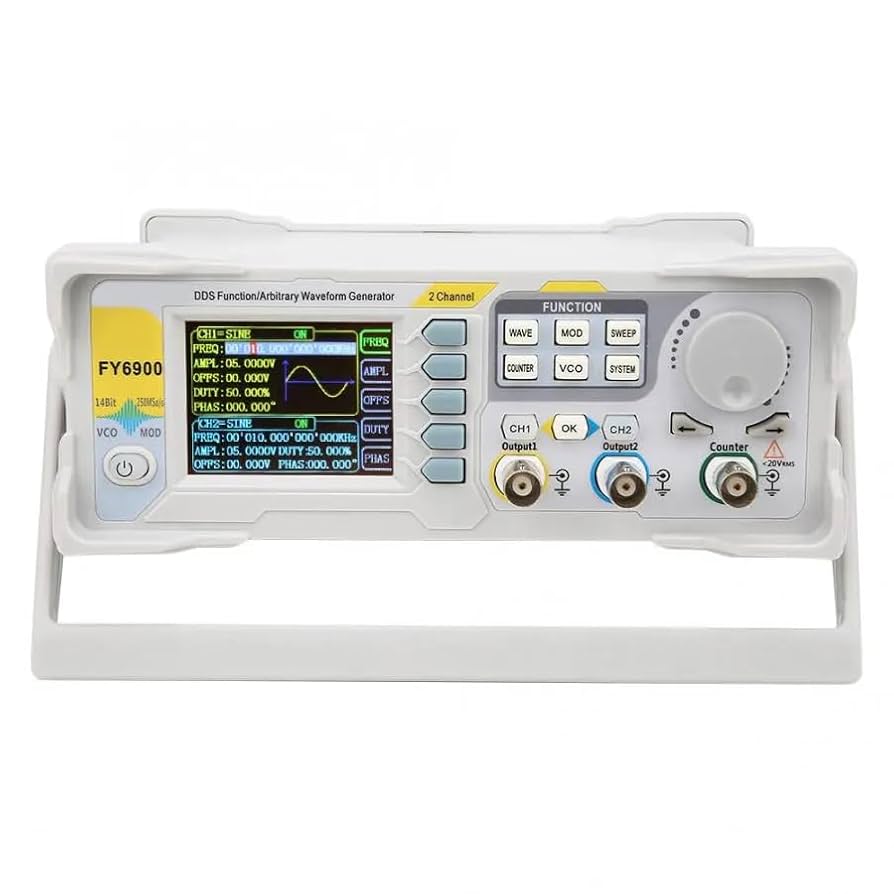

Function Generator FY6900-60M

Specifications:

Sine : 0Hz~60MHz
Ramp, Triangle: 0Hz~10MHz
Pulse Wave: 0Hz~10MHz
Arbitrary Waveform: 0Hz~10MHz
TTL/COMS: 0Hz~10MHz
Min. Pulse Width: 20ns(All models of pulse wave minimum width can reach 20ns).
Min. Resolution on all frequency range: 1 μHz.
Accuracy: +/-20ppm
Stability: +/-1ppm/3 hours.
Waveform Parameters
Waveform Types: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz form other sets Pulse, Multitone, Noise, ECG, Trapezoider-Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Waveform Length: 8192 points * 14 bits.
Sampling Rate: 250MSa/s
Vertical resolution: 14 bits.
Sine: Harmonic Suppression: ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz)
Total Harmonic Distortion: <0.5% (20Hz~20kHz,0dBm)
Square: Rise/Fall Time: ≤7ns(VPP<5V)
Overshoot: ≤5%
Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
Sawtooth Wave: Linearity >99% (0.01Hz~10kHz)
Output Parameters
Amplitude(VPP):
Frequency≤5MHz: 1mVpp~24Vpp;
5MHz<Frequency≤10MHz: 1mVpp~20Vpp;
10MHz<Frequency≤20MHz: 1mVpp~10Vpp;
Frequency>20MHz: 1mVpp~5Vpp;
