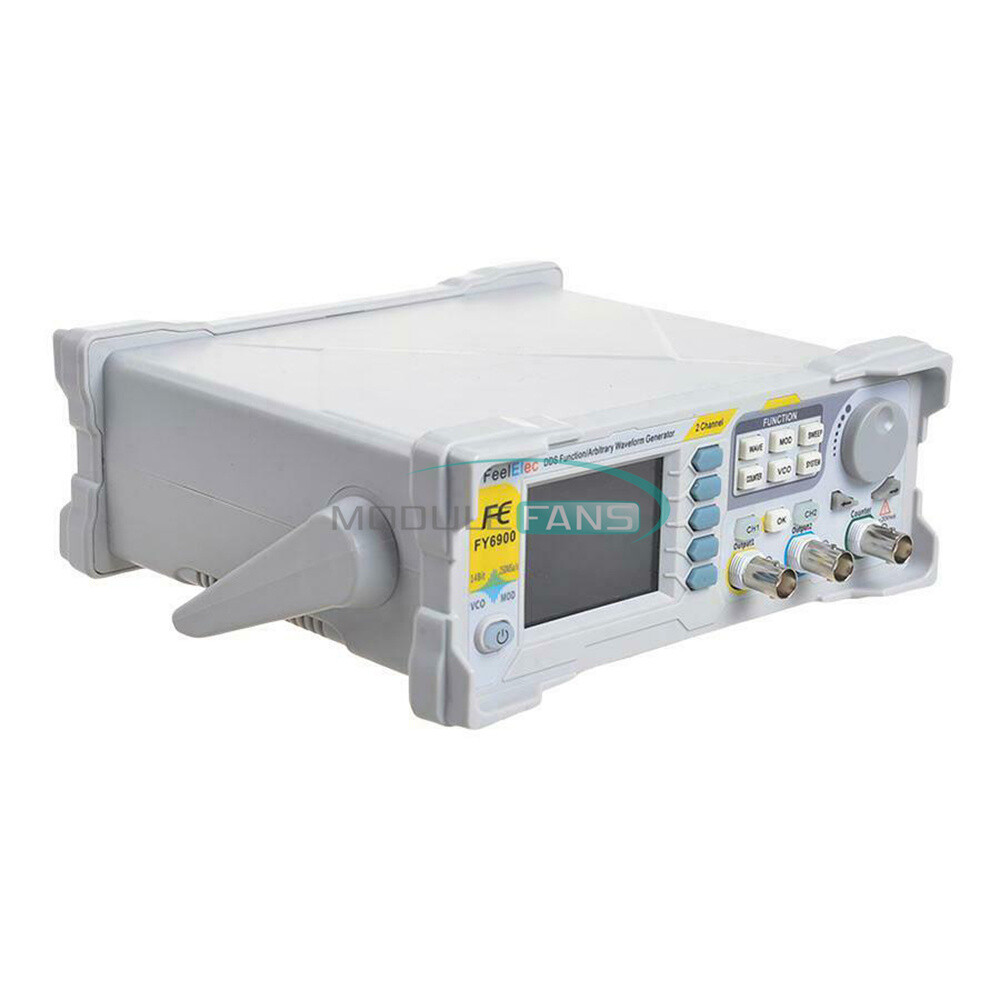

Function Generator

Menghasilkan sinyal listrik dengan bentuk gelombang tertentu, seperti sinus, persegi, atau segitiga, dengan amplitudo dan frekuensi yang dapat diubah-ubah (Lab Eldrive).
Specification:
Dimention: 20cm x 15cm x 10cm
Frequency Parameters
Sine Wave Range: 0Hz~60MHz
Triangle Wave: 0Hz~10MHz
Ramp Pulse Wave: 0Hz~10MHz
Arbitrary Waveform: 0Hz~10MHz
TTL/COMS: 0Hz~20MHz
Min. Pulse Width: 20ns(Pulse wave minimum width of all models can reach 20ns).
Min. Resolution: 1 μHz.
Frequency Accuracy: +/-20ppm
Frequency stability: +/-1ppm/3 hours.

Waveform Parameters
Waveform Types: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz form other sets Pulse, Multitone, Noise, ECG, Trapezoider-Pulse, Nausse
Waveform Length: 8192 points * 14 bits.
Sampling Rate: 250MSa/s
Vertical resolution: 14 bits.
Sine: Harmonic Suppression: ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz)
Total Harmonic Distortion: <0.5% (20Hz~20kHz,0dBm)
Square: Rise/Fall Time: ≤7ns(VPP<5V)
Overshoot: ≤5%
Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
Sawtooth Wave: Linearity >99% (0.01Hz~10kHz)

Output Parameters
Amplitude(VPP): Frequency≤10MHz 10MHz20MHz
1mVpp~20Vpp 1mVpp~10Vpp
