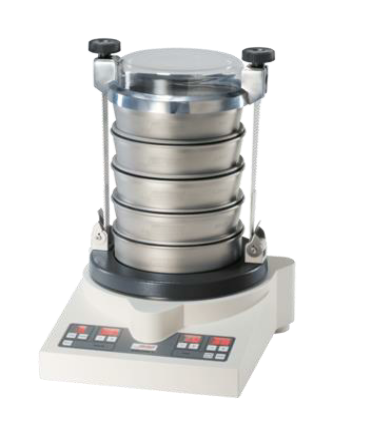

FRITSCH ANALYSETTE 3 PRO VIBRATORY SIEVE SHAKER

The little sister of the ANALYSETTE 3 PRO for all typical sieving tasks in the laboratory with optical adjustment of the amplitude on the running instrument. Complete with the practical FRITSCH sieve stack tensioning system EASYTWIST and the possibility of automatic evaluation of the sieve analysis using the extensive FRITSCH evaluation software AUTOSIEVE.
The ANALYSETTE 3 Pro is also suitable for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves.
It is convertible into a micro mill for fine comminution of dry laboratory samples or solids in suspensions and for homogenisation of emulsions or pastes.
Ref. Number : 03.7020.00
Model : ANALYSETTE 3 Pro Vibratory Sieve Shaker
model PRO, for 100-240 V/1~, 50-60 Hz, 50 Watt

Included Test Sieve :
Clamping lid plexiglas for test sieves 200 mm/8“ dia. for dry sieving 31.2020.00
Sieve pan made of stainless steel 200 mm dia., 50 mm height 31.1000.03
test sieve 38 µm 30.6900.03
test sieve 53 µm 30.6300.03
test sieve 63 µm 30.6000.03
test sieve 75 µm 30.5700.03
test sieve 106 µm 30.5105.03

Dry sieving
Measuring range : 20 µm - 63 mm*
Max.quantity : < 63 mm: up to 2 kg*
