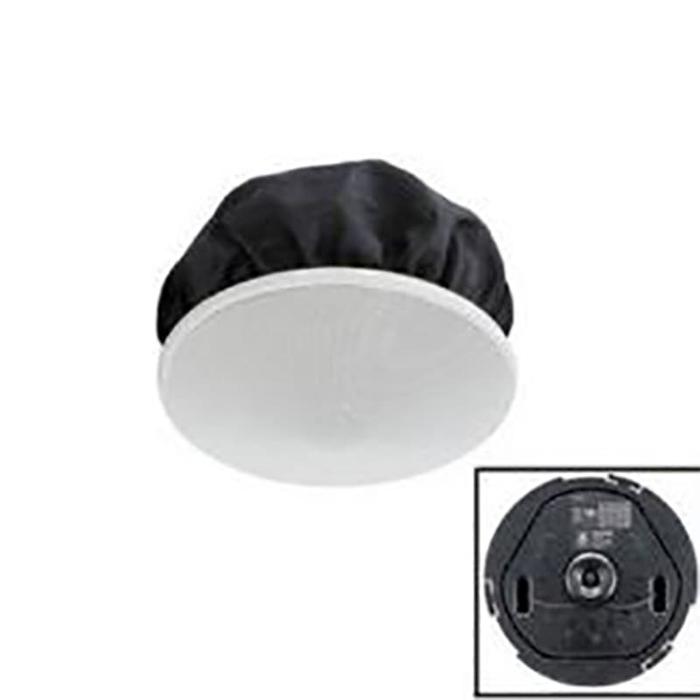

Ceiling Speaker 30 W TOA

Model Number Z-2352C
Unit 1unit
Rated Input Power (W) 30 (High Impedance)
Accessories Panel x1, Ceiling reinforcement ring x1, Safety wire x1, Paper pattern x1
Enclosure Bass Reflex Type
Input Terminal Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Option Anchor hanging bracket: ZY-AH1, Back can: ZY-BC1, Tile bar bridge: ZY-TB1, Trim ring: ZY-TR1
Sound Pressure Level (dB) 90 (1 W, 1 m)
Dimensions (φxD) (mm) φ230x200
Mounting Hole (mm) φ200 (Maximum ceiling thickness: 37)
Frequency Response (Hz) 70-20000 (-10 dB), 50-20000 (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
Usable Cable Solid copper wire: φ0.5 - φ1.6mm (equivalent to AWG No. 24 - 14); Stranded copper wire: 0.2 - 2.5mm² (equivalent to AWG No. 24 - 14)
Impedance 100 V line: 330Ω (30 W), 1kΩ (10 W), 3.3kΩ (3 W), 10kΩ (1 W); 70 V line: 170Ω (30 W), 330Ω (15 W), 1kΩ (5 W), 3.3kΩ (1.5 W), 10kΩ (0.5 W); 25 V line: 170Ω (3.7 W), 330Ω (1.9 W), 1kΩ (0.6 W), 3.3kΩ (0.2 W), 10kΩ (0.06 W); 16Ω, 8Ω
Speaker Component 12cm cone-type
Finish Enclosure: Steel plate, plating; Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black; Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint; Punched net: Steel plate, white, paint
Power Handling Capacity (W) Continuous pink noise: 60 (8 Ω), 30 (16 Ω); Continuous program: 120 (8 Ω), 60 (16 Ω)
Berat (Kg) 3.7
